Honey stick producers and other stick-pack food manufacturers face a common set of operational challenges: manual cartoning drives up labor costs, missed or misplaced sticks and leaflets create quality risks, and uncoordinated upstream and downstream equipment disrupts continuous production. For companies searching for a stick pack cartoning machine for honey sticks, Guangdong Rich Packing Machinery Co., Ltd., operating under the brand Rich Packing, offers the RQ-ZH-120L Automatic Cartoning Machine as a fully automatic solution engineered to address exactly these pain points.

Understanding the Packaging Challenge

Packaging operations in the pharmaceutical, chemical, electronics, and food industries share overlapping difficulties. Manual cartoning of small, individually wrapped items such as honey sticks or comparable sachets is labor-intensive and prone to human error. Missed or misplaced products and leaflets inside a carton create downstream quality issues that can affect customer trust and regulatory compliance. In addition, without a machine designed for continuous-line coordination, upstream feeding equipment and downstream sealing or bottling equipment cannot operate in sync, causing bottlenecks. The RQ-ZH-120L was designed by Rich Packing as a manufacturer of automatic cartoning machinery that combines optical, electronic, pneumatic, and mechanical technologies specifically to raise automation levels and reduce labor costs in these environments.

Why the RQ-ZH-120L Fits Stick Pack and Sachet Applications

Within its food industry adaptation, the RQ-ZH-120L is built for cartoning of sachets and comparable packaged products, a category that naturally includes stick-pack formats such as honey sticks. The machine’s product line positioning describes it as automatic vertical cartoning equipment suited for small and medium output volumes, which aligns with the production scale of many stick pack manufacturers. Beyond food, the same platform serves pharmaceutical cartoning of blister packs, bottles, and tubes under GMP compliance, chemical cartoning of tubes, ointments, and sachets, and electronics cartoning of items such as electronic cigarettes. This breadth demonstrates that the underlying technology platform is versatile enough to be configured for the specific dimensional and handling requirements of honey stick sachets.

Full Process Automation From Feeding to Rejection

The RQ-ZH-120L completes the entire cartoning sequence in one machine: feeding, carton forming, conveying, leaflet folding, inspection, product insertion, batch printing, tongue closing, carton sealing, and missing-product rejection. For a honey stick producer, this means the sticks move from bulk feeding through to a sealed, printed carton without manual intervention at any stage, directly reducing the labor costs associated with manual cartoning.

Speed and Stability Through Dual Servo Feeding

A defining technical feature is the feeding system with dual servo motors, which achieves 125 cartons per minute with faster and more stable performance than a one-servo-motor configuration. The machine’s overall cartoning speed range spans 35 to 125 cartons per minute, giving producers flexibility to match output to order volume while maintaining consistent quality at higher speeds.

Dual Inspection for Quality Assurance

To address the quality risk of incorrect quantities or improper carton placement, the RQ-ZH-120L uses a dual inspection methodology: product and leaflet are verified before insertion, and again once inside the carton. Supporting this is a high level of intelligence built from dense inspection points at leaflet feeding, leaflet counting, product loading, product counting, and carton positioning, allowing complete monitoring of the process and the final result. This level of verification is particularly relevant for honey sticks, where consistent fill and correct sachet count per carton directly affect product quality perception.

Durability and Safety Engineering

The machine’s construction uses stainless steel or nickel chrome plating with stable chemical properties, delivering corrosion resistance, non-toxicity, and safety. Welded areas receive tempering treatment to extend service life, which matters for food-contact-adjacent environments where hygiene and equipment longevity are ongoing concerns. A dual clutch design activates bidirectional protection when the main motor is overloaded or the leaflet folder faults, protecting both the equipment and the operator during continuous operation.

Visualized Monitoring and Maintenance

Faults and counting data are fully visualized and viewable on the touch screen at any time, simplifying maintenance and troubleshooting. All components are clearly numbered for convenient routine maintenance, reducing downtime during servicing. The machine is described as delivering highly stable operation suitable for continuous 24-hour production, a relevant consideration for manufacturers running extended shifts to meet demand for stick pack products.

Reliable Components From Established Brands

The RQ-ZH-120L uses electrical and mechanical components sourced from internationally established brands, contributing to reliable quality. The configuration includes Panasonic (Japan) servo motors and drivers, an SEW (Germany) main motor, a Danfoss (Denmark) frequency converter, a Siemens (Germany) PLC, Omron (Japan) sensors and switches, SICK (Germany) proximity switches, LEUZE (Germany) photoelectric switches, SMC (Japan) solenoid valves and pneumatic components, and a Schneider (France) emergency stop button, among other parts. This component sourcing strategy underlies the stated reliability and stability of the machine’s performance.

Compact Footprint and Line Integration

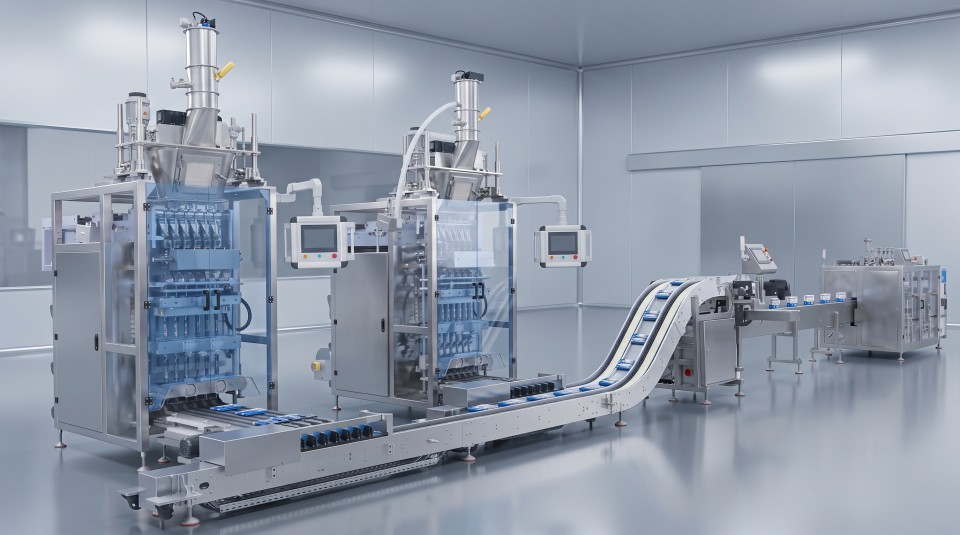

Occupying approximately 3 square meters, the RQ-ZH-120L is easy to transport and install, an advantage for facilities with limited floor space. It is also highly integrated, connecting with end sealers, blister packing machines, counting and bottling lines, cellophane overwrapping machines, strapping machines, and other cartoning machines according to production requirements. For a honey stick production line, this means the cartoning stage can be positioned alongside upstream filling or sealing equipment and downstream secondary packaging equipment without requiring a redesign of the existing line layout.

Technical Specifications at a Glance

The RQ-ZH-120L operates at a total power of 1.10 kW, runs on a 220V/380V 50Hz power supply, and requires air pressure of at least 0.6 MPa with air consumption between 120 and 160 L/min. Its dimensions are 2,150mm x 1,140mm x 1,800mm, with a net weight of about 1,500 kg. Carton size requirements range from 65-150mm in length, 35-85mm in width, and 12-45mm in height, with carton weight between 240-360g/m². Leaflet requirements cover an open carton size of 78mm-250mm in length and 85mm-170mm in width, with 1 to 4 folds and a weight range of 60 g/m² to 70 g/m².

A Manufacturer Focused on Automation Across Industries

Guangdong Rich Packing Machinery Co., Ltd., headquartered at Building D, NO.226, Qiaotou Street, Haizhu District, Guangzhou City, positions itself as a packaging machinery manufacturer addressing automation needs across pharmaceutical, chemical, electronics, and food sectors. The RQ-ZH-120L reflects this positioning by combining optical, electronic, pneumatic, and mechanical technologies into a single unit that handles diverse product formats and specifications. For businesses evaluating a stick pack cartoning machine for honey sticks, the combination of dual servo feeding, dual inspection, durable construction, visualized monitoring, and proven component sourcing represents a technically substantiated option built around the goal of fully automatic cartoning from feeding through sealing and missing-product rejection.
